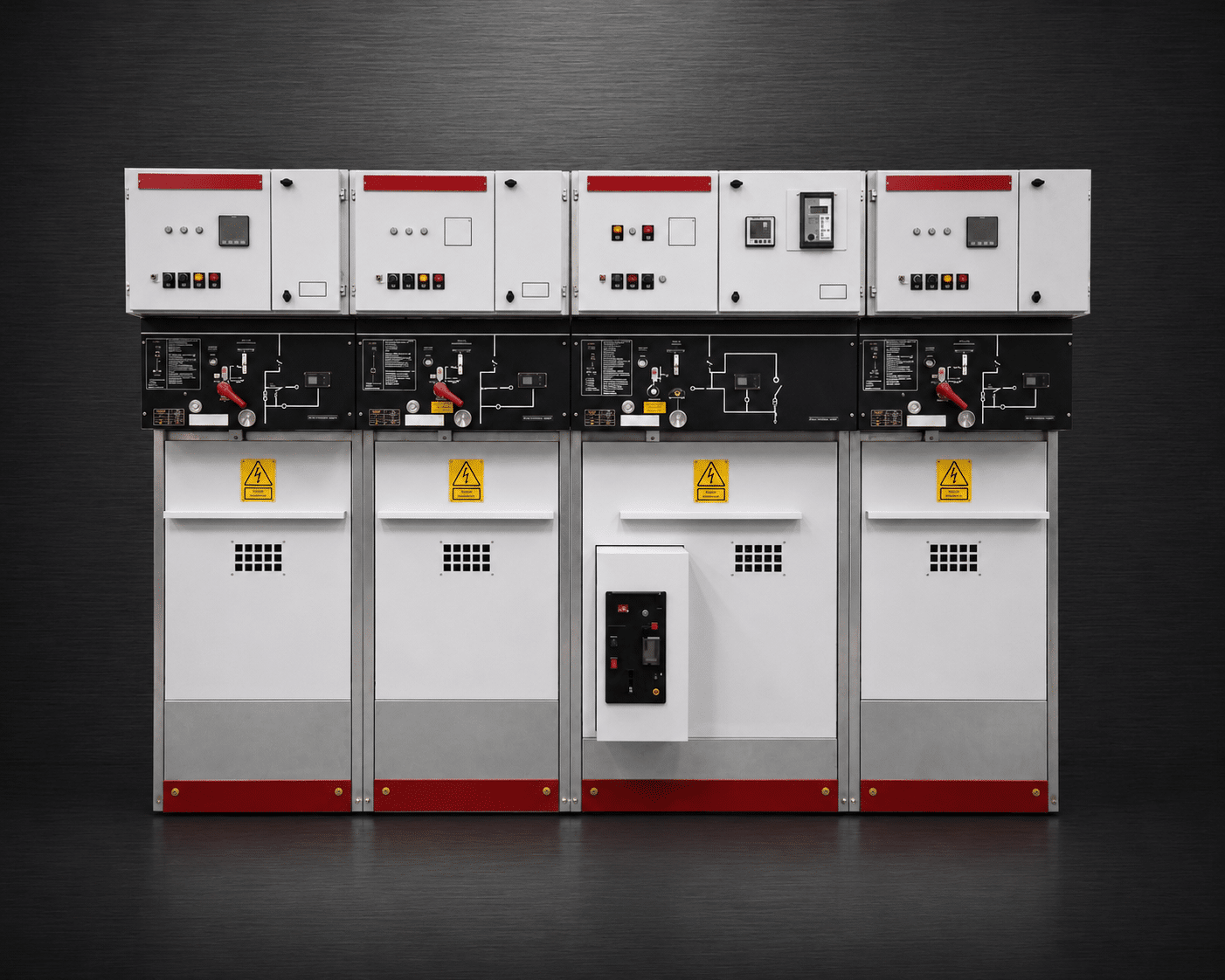

Description
Structural Advantages
- Compatible operation with remote monitoring and control systems.
- Safe switching and isolation operations with ASTOR brand SF6 gas insulated load break switches,
SF6 gas insulated switches and SF6 gas insulated disconnectors. - Compact dimensions provide space-saving solutions in MV Distribution Transformer Centers
(Beton Kiosk Monoblock Centers, Sheet Metal Monoblock Centers). - Modular design principle enables easy expansion to the right and left sides, providing simple
installation and dismantling advantages. - High operational safety with mechanically interlocked switching systems against incorrect
switching operations.
Technical Specifications
| Type | AS 12 | AS 24 | AS 36 |
|---|---|---|---|
| Rated Voltage | 12 kV | 24 kV | 36 kV |
| Frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| Rated Current | 630-1250 A | 630-1250 A | 630-1250 A |
| Short Circuit Current | 16-20-25 kA | 16-20-25 kA | 16-20-25 kA |
Product Types
| 24 kV | 36 kV | 40.5 kV Metalclad |
|---|---|---|
| ACBS24 | ACBS36 | MCL40-0201 |
| ALBS24S | ALBS36S | MCL40-0202 |
| AS24 CBC | AS36 CBC | MCL40-0204 |
| AS24 KB | AS36 KB | MCL40-0207 |
| AS24 VTC | AS36 VTC | MCL40-3201 |
