Technical Parameter / Feature Category	Outdoor Weather-Resistant Current Transformer Specifications
Rated & Maximum Voltage ( $U_m$ )	24 kV Class (Rated Insulation Level: 24 kV)
Power-Frequency Withstand Test Voltage (1 min)	50 kV
Lightning Impulse Withstand Test Voltage (1.2/50 µs)	125 kV
Rated Primary Current Range ( $I_{pn}$ )	150 A, 200 A, 250 A, 300 A, 400 A, 600 A (other primary currents available upon agreement)
Rated Secondary Current ( $I_{sn}$ )	0.1 A, 1 A
Rated Burdens & Accuracy Classes	• Burden: 0.9 VA to 5 VA (maximum burden depends on parameters) • Accuracy Classes: 0.5, 0.5/10P20, 5P10, 10P10, 1FS10, 0.5FS5
Short-Time Thermal ( $I_{th}$ ) & Dynamic ( $I_{dyn}$ ) Currents	• Thermal Current ( $I_{th}$ , 1s): 16 kA to 30 kA • Dynamic Current ( $I_{dyn}$ ): 40 kA to 75 kA
Continuous Rating & Extended Currents	105% to 160% of rated primary current
Operational & Environmental Parameters	• Rated Frequency ( $f_n$ ): 50 Hz, 60 Hz • Insulation Class: Class E • Creepage Distance: 780 mm

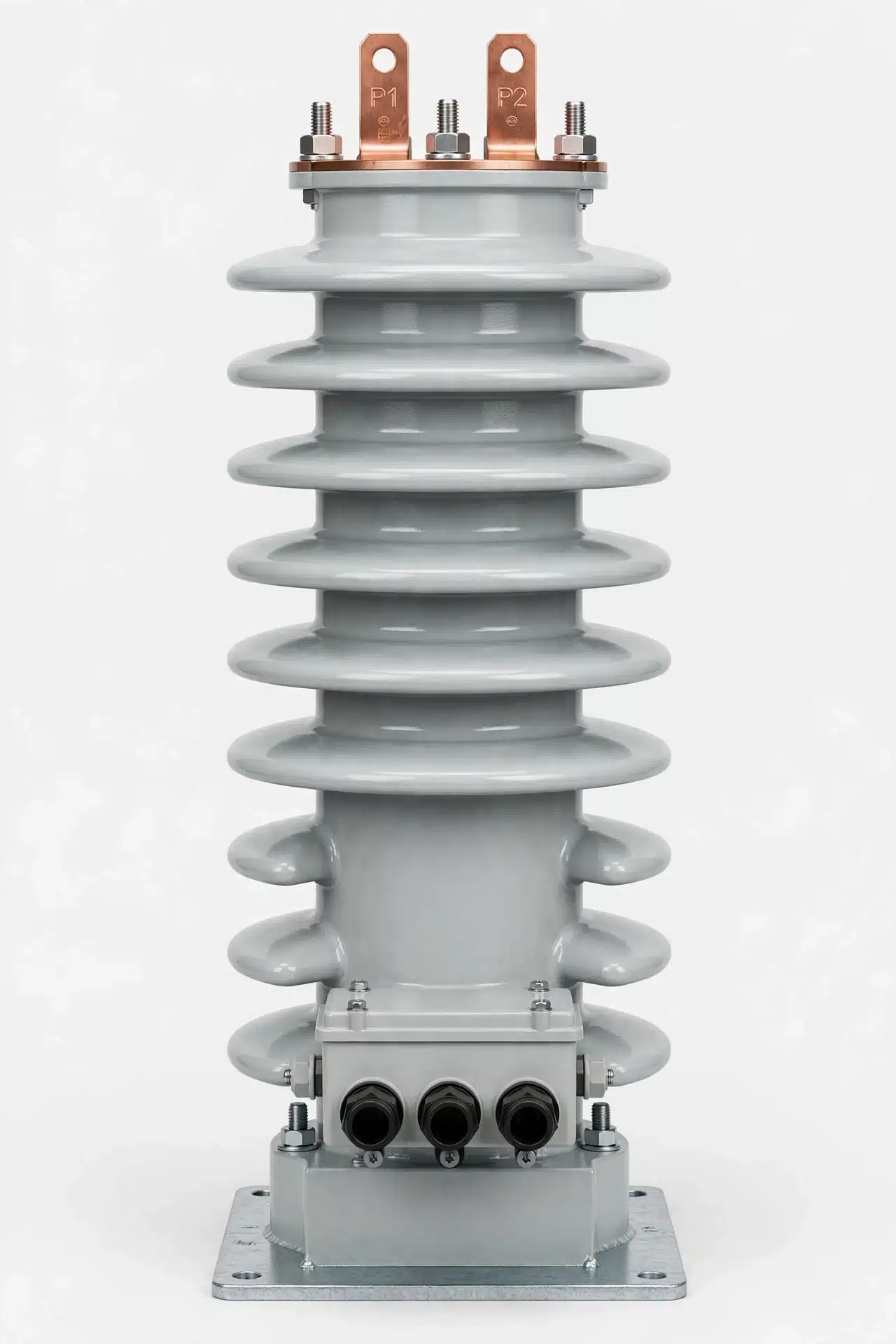

Outdoor Weatherproof Current Transformer (Up to 24kV )
