Property Specification
Type:NA2XY
Standards: IEC 60502-1

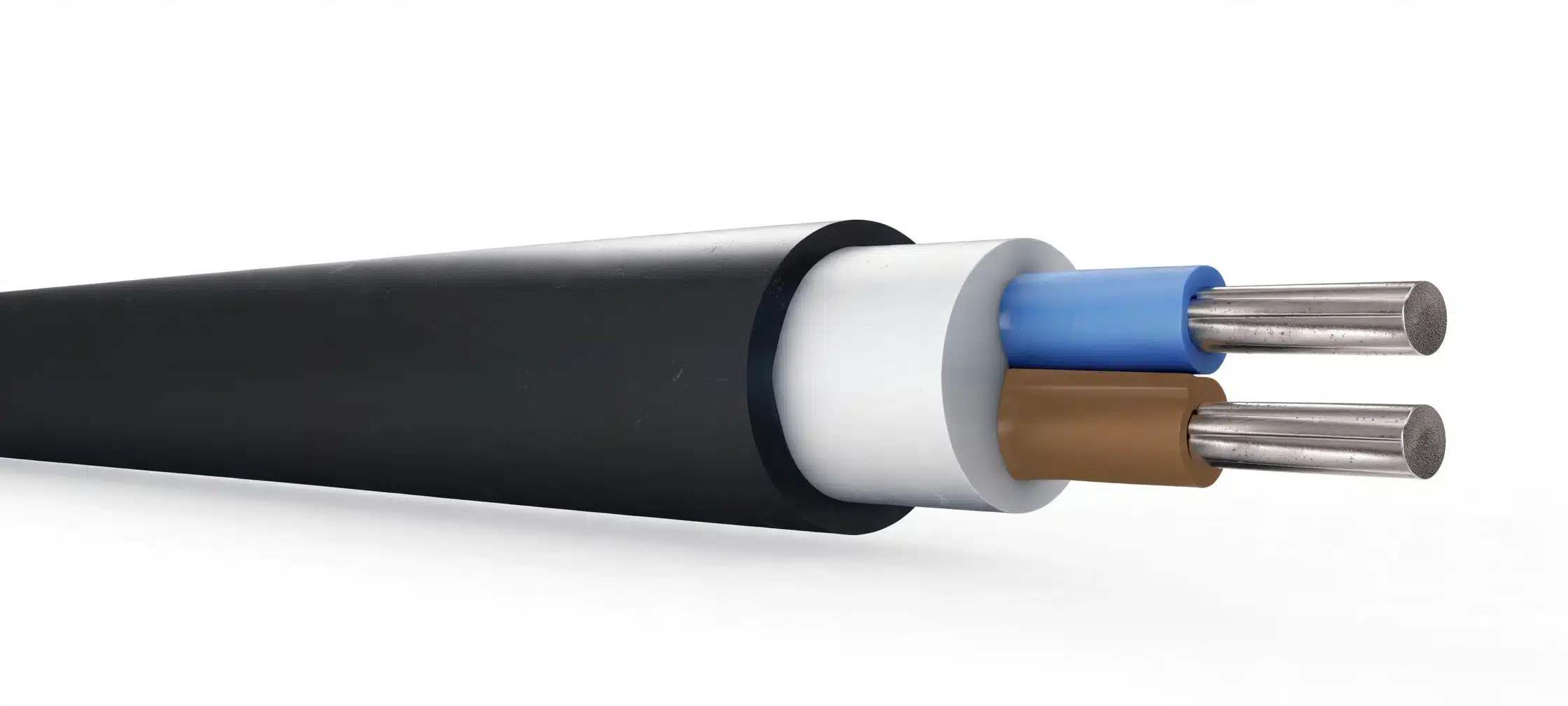

Construction: Aluminum conductor, XLPE insulation, PVC filler layer, PVC outer sheath
Applications: Characterized by minimal dielectric losses, these cables are suitable for residential and industrial installations, outdoor use, underground laying, and cable conduits—especially in power plants facing sudden load fluctuations.
| Conductor Size (mm²) | Overall Diameter (mm) | Cable Weight (kg/km) | Max. Conductor DC Resistance at 20°C (Ohm/km) | Current Carrying Capacity Ground at 20°C (A) | Current Carrying Capacity Air at 30°C (A) |
| 2×25 | 21.0 | 550 | 1.200 | – | 91 |
| 2×35 | 23.0 | 750 | 0.868 | – | 113 |
| 2×50 | 26.0 | 900 | 0.641 | – | 138 |
| 2×70 | 30.0 | 1150 | 0.443 | – | 174 |
| 2×95 | 33.0 | 1500 | 0.320 | – | 210 |
| 2×120 | 37.0 | 1850 | 0.253 | – | 244 |
| 2×150 | 41.0 | 2400 | 0.206 | – | 281 |
| 2×185 | 46.0 | 2850 | 0.164 | – | 320 |
| 2×240 | 50.0 | 3500 | 0.125 | – | 378 |
