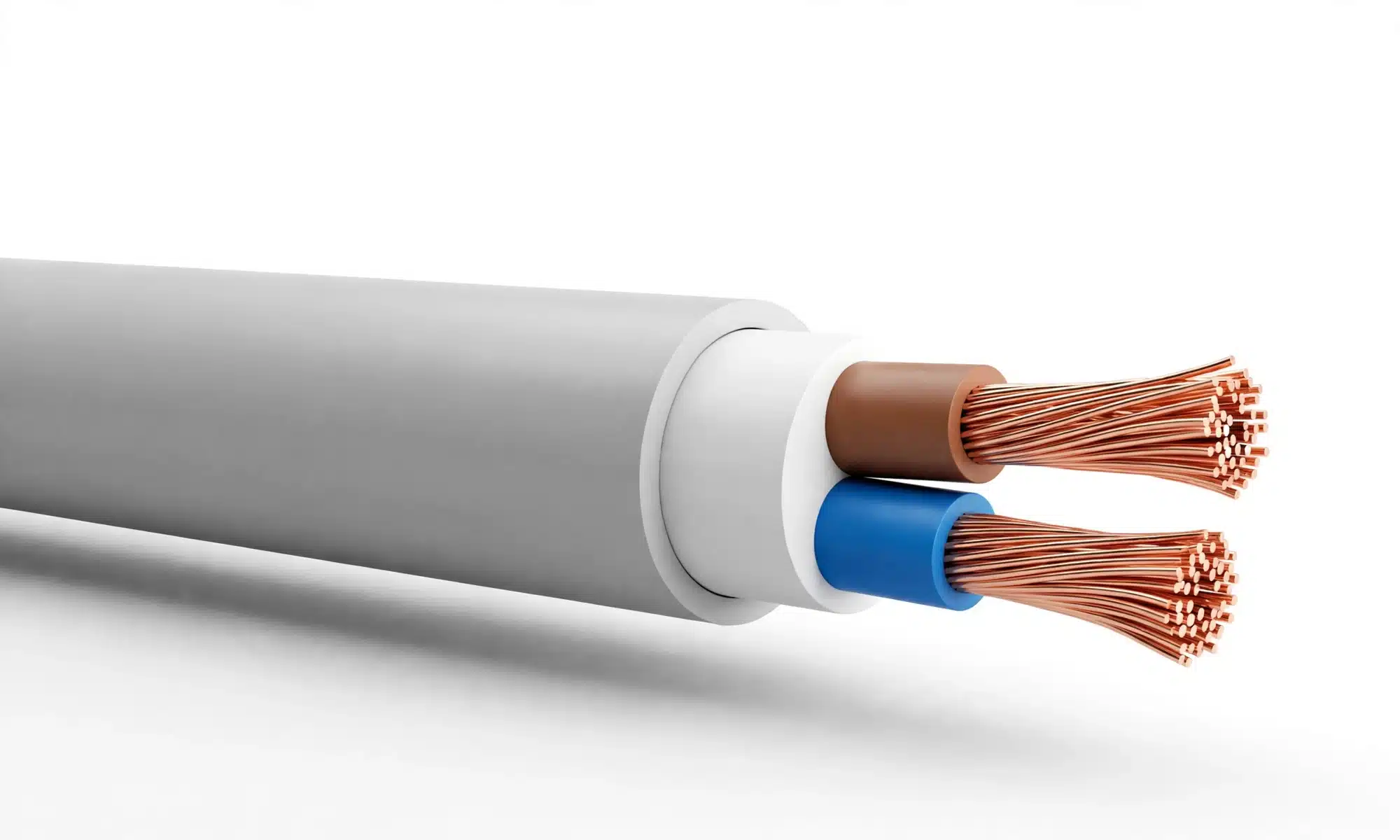

(300/500 V) Multi-Core Copper/HFFR Cable (300/500 v)

Property Specification
Type: NHXMH FE 180
Standards: IEC 60502-1
Construction: Copper conductor, mica tape, XLPE insulation, HFFR bedding/filler, HFFR outer sheath
Applications: These circuit-integrity cables maintain functionality during a fire. Used in mines, hotels, schools, high-rise buildings, hospitals, tunnels, power stations, data centers, high-occupancy commercial complexes, and fire-sensitive areas.

Description

Technical Specifications

Conductor Size (mm²) Overall Diameter (mm) Cable Weight (kg/km) Max. DC Resistance at 20°C (Ohm/km) Current Carrying Capacity in Air (A)
2×1.5 10.5 130 12.1 22
2×2.5 11.0 160 7.41 30
2×4 12.0 210 4.61 40
2×6 13.0 260 3.08 50
2×10 16.5 460 1.83 70
2×16 18.5 620 1.15 93
2×25 21.5 900 0.727 108
2×35 24.5 1200 0.524 135
