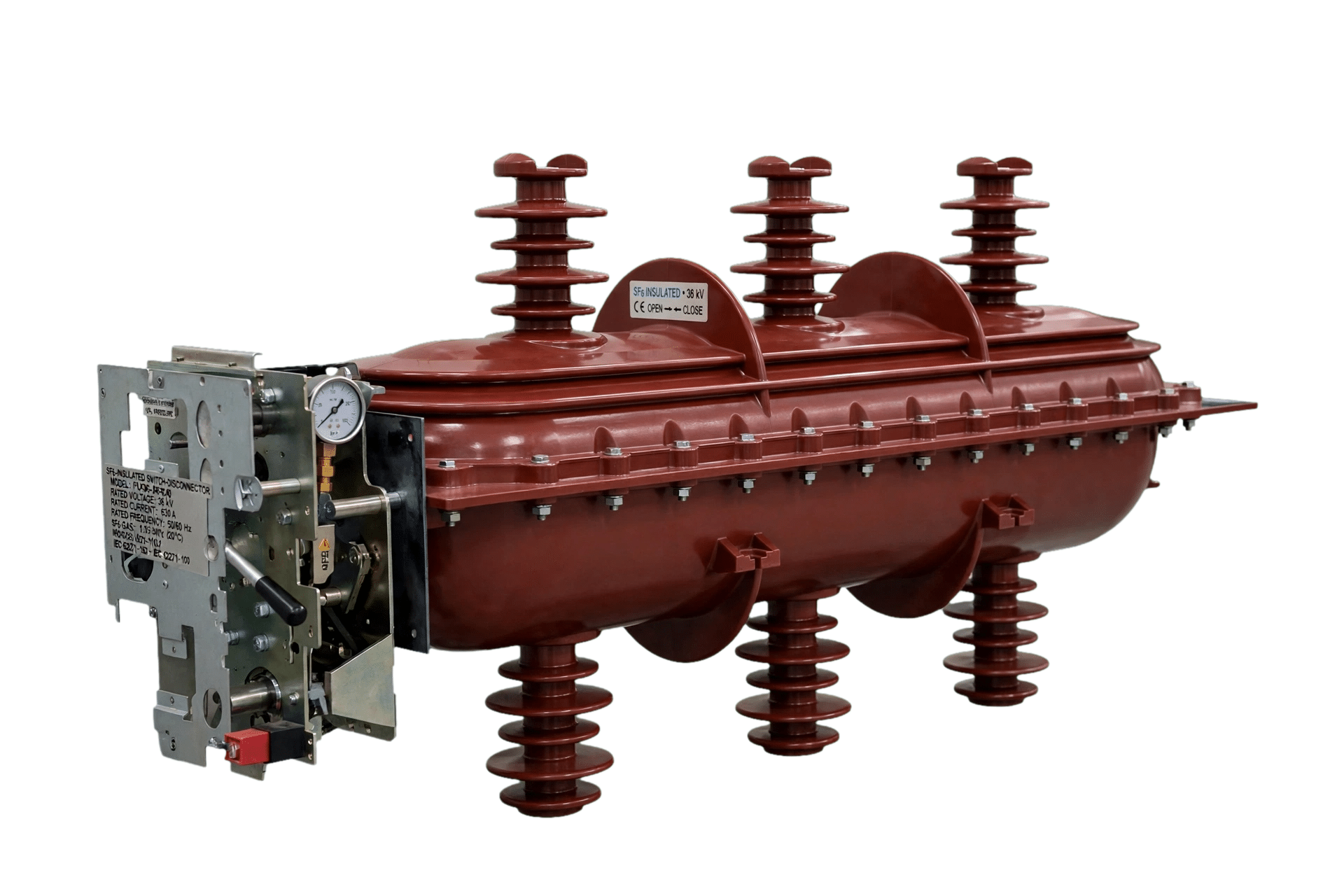

Technical Product Range & Performance Matrix
| Technical Parameter / Feature Category | Medium-Voltage Disconnector Specifications |
| Nominal Operating Voltage Class | 7.2 kV, 12 kV, 17.5 kV, 24 kV, 36 kV |
| Power Frequency Withstand Voltage (50 Hz, 1 min) |
• Insulation: 20 kV (7.2 kV), 28 kV (12 kV), 38 kV (17.5 kV), 50 kV (24 kV), 70 kV (36 kV) • Isolation: 23 kV (7.2 kV), 32 kV (12 kV), 45 kV (17.5 kV), 60 kV (24 kV), 80 kV (36 kV) |
| Lightning Impulse Withstand Voltage (1.2/50 µs Peak) |
• Insulation: 60 kV (7.2 kV), 75 kV (12 kV), 95 kV (17.5 kV), 125 kV (24 kV), 170 kV (36 kV) • Isolation: 70 kV (7.2 kV), 85 kV (12 kV), 110 kV (17.5 kV), 195 kV (36 kV) |
| Short-Time Withstand Current & Rating (1s) |
• 12.5 kA (630 A to 1250 A for 7.2–24 kV) • 16 kA (630 A to 1250 A for 7.2–24 kV) • 20 kA (630 A to 1250 A for 7.2–24 kV) • 25 kA (630 A to 1250 A for 7.2–24 kV; 1250 A for 36 kV) |
| Peak Dynamic Making Capacity | 2.5 times the rated short-time withstand current |
| Mechanical Endurance Rating | 1,000 operations |
| Storage Temperature Limits | -40°C to +70°C (dry, dust-free environment with minimal thermal fluctuations) |
| Operating Temperature Limits | -5°C to +40°C |
